FLUOROCARBON COATING
  • Detail
  • Technical Parameters

  • FLUOROCARBON COATING

    PVDF paint is a metallic topcoat using Fluropolymer (PVDF) fluorine resin and special pigments with excellent weather resistance as the main components. It is an excellent topcoat for building materials with good corrosion resistance, abrasion resistance, pollution resistance and durability.

    Characteristic:

    1.Special stain resistant modification

    2.Improved rheology for better application

    3.Cool pigmentation for long term color retention in exterior application.

    4.Weather resistant



    Substrates

    Hot Dip Galvanized(HDG)

    Galvalume/Zincalume/Alu-zinc

    Aluminum


    End uses

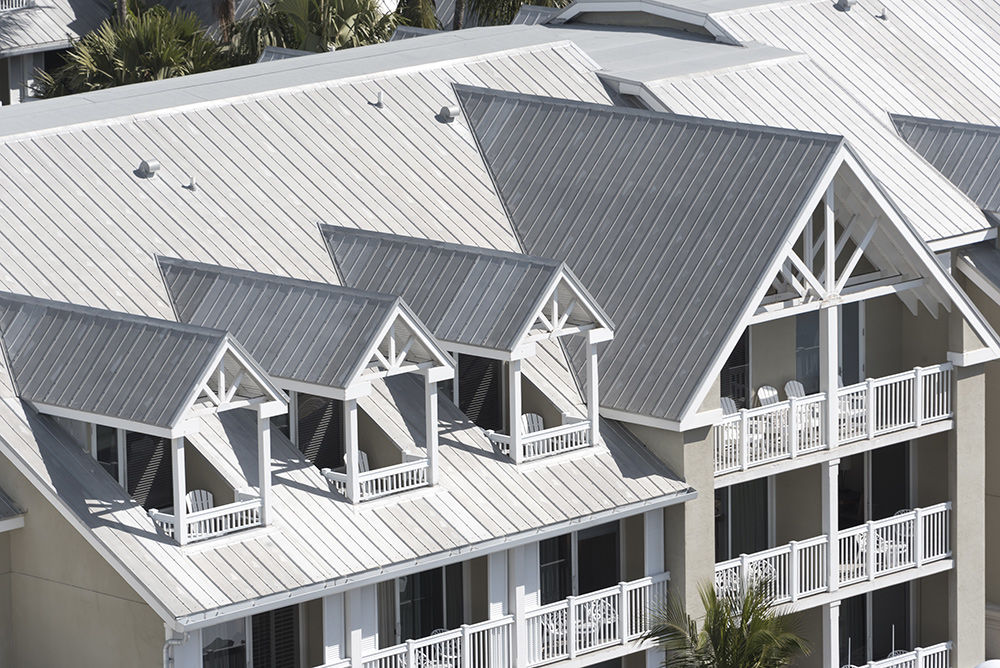

    Coilcoat coatings are ideal for long-life external use on premium commercial and pre-engineered building including:

    Metal roofs

    Mobile homes and metal buildings near sea coast

    Canopies and industrial sheds

    Commercial buildings in aggressive environment



  • PRODUCT DATA SHEET

    PRODUCT CODE

    TT450

    NAME,SYSTEM

    HG BLACK,EXPOXY

    SHELF LIFE

    6 MONTHS FROM THE MFG DATE



    COATING PROPERTIES

    DENSITY(WEIGHT PER GALLON):

    08.14±0.2lbs/gal

    WEIGHT PERCENT SOLIDS:

    36.6±2.00%

    VOLUME PERCENT SOLIDS:

    29.0±2.00%

    PACKAGE VISCOSITY：

    28-33 sec with Zahn#4@77°F

    VOCs PER SOLID GALLON:

    2.74lbs/gal

    HAPs PER SOLID GALLON：

    N/A

    PERCENT HAPS BY WEIGHT:

    N/A

    PERCENT LEAD BY WEIGHT:

    LEAD FREE

    WAX OR WAX-FREE SYSTEM

    WAX FREE



    APPLICATION PROPERTIES

    APPLICATION METHOD:

    Direct-Roll Coating

    APPLICATION VISCOSITY:

    28-33 sec with Zahn#4@77°F

    REDUCER:

    DIACETONE ALCOHOL

    SUBSTRATE：

    ALUMINUM

    PRETREATMENT:

    STD

    REQUIRED**CLEAR COAT&DFT：

    N/A

    REQUIRED**PRIMER COAT&DFT：

    N/A

    PEAK METAL TEMPERATURE:

    435°F-450°F

    WET FILM THICKNESS:

    1.72-2.07mil（s）



    DRY FILM PROPERTIES

    DRY FILM THICKNESS(PRIMER,TOP):

    Pmr：N/A

    TOP:0.5-0.6mil（s）

    DRY FILM THICKNESS(CLEAR,TOTAL):

    Clr：N/A

    TOTAL:0.5-0.6mil（s）

    PENCIL HARDNESS:

    F-H with Turquoise Pencil

    SOLVENT RESISTANCE：

    100+Rub Cycles with MEK

    GLOSS/SHEEN 1（Pretreatment）:

    80+@60°

    GLOSS/SHEEN 1（Pretreatment）:

    N/A

    T-BEND：

    0T-2T No Tape off

    IMPACT(RESERVE/DIRECT):

    24 in-lbs No Tape off

    ADHENSION:

    5B,No Tape off

    METAL MARKING RESISTANCE:

    No Metal Marking

    TOTAL SOLAR REFLECTANCE:

    N/A

    LUMINOUS REFLECTANCE FACTOR:

    N/A

    THEORETICAL COVERAGE：

    845 sq.ft./gal @0.55mil（s）

    COLOR ON-LINE:

    VISUAL

    ADDITIONAL NOTE:
