HIGH DURABLE POLYESTER
  • Detail
  • Technical Parameters

  • High Durable Polyester coatings

    Coilcoat coatings are field proven high durable polyester finishes designed for a wide variety of applications in pre engineered buildings. These coatings provide superior physical properties with excellent outdoor durability to environmental factors. This when applied with our proprietary corrosion resistant primer provide good protection in harshest of environment.

    Benefits

    Coilcoat coatings provide a number of unique benefits including:

    Excellent resistance to sun, rain and other natural elements

    Superior scratch resistance

    Good colour retention

    Excellent overall adhesion

    Great flexibility and formability



    Substrates

    Hot-Dip Galvanized (HDG)

    Galvalume/Zincalume/Alu-Zinc

    Aluminium



    Colors

    Coil coat coatings are available in a wide spectrum of popular indu-

    stry colours based  on inorganic and superior organic pigments

    End use

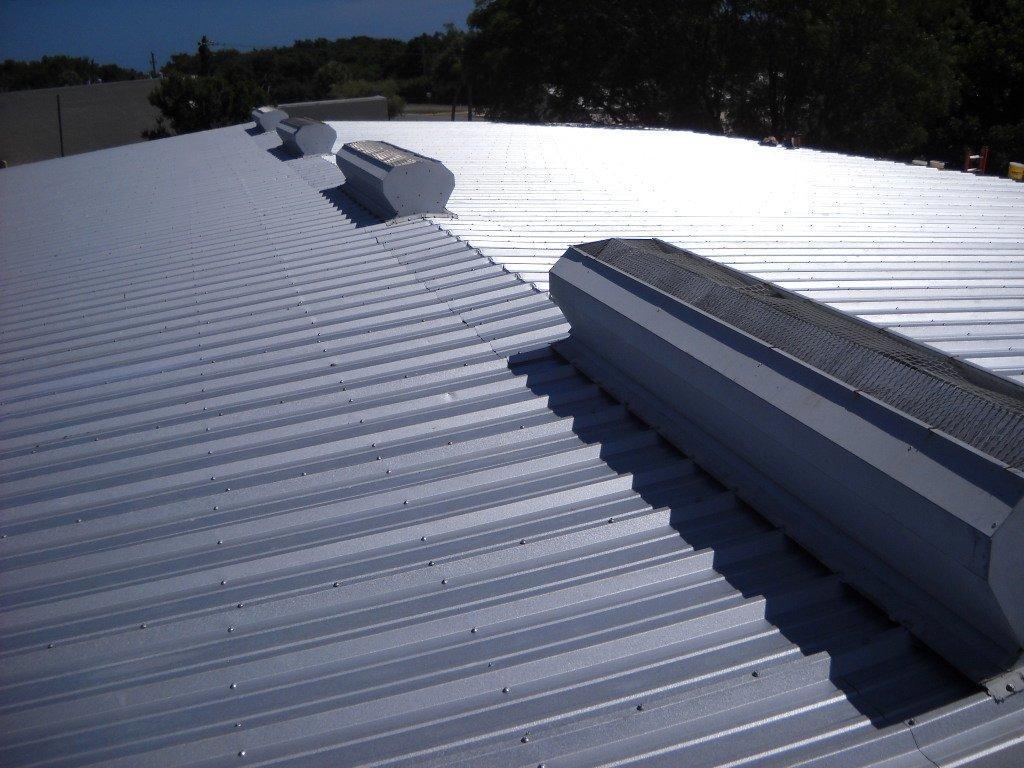

    Coilcoat coatings are ideal for long-life external use on agricultural buildings,

    commercial and  pre-engineered buildings:

    Residential metal siding and roofing systems

    Industrial sheds and commercial building facades

    Coatings for aluminum composite panels

  • PRODUCT DATA SHEET

    PRODUCT CODE

    TT450

    NAME,SYSTEM

    HG BLACK,EXPOXY

    SHELF LIFE

    6 MONTHS FROM THE MFG DATE



    COATING PROPERTIES

    DENSITY(WEIGHT PER GALLON):

    08.14±0.2lbs/gal

    WEIGHT PERCENT SOLIDS:

    36.6±2.00%

    VOLUME PERCENT SOLIDS:

    29.0±2.00%

    PACKAGE VISCOSITY：

    28-33 sec with Zahn#4@77°F

    VOCs PER SOLID GALLON:

    2.74lbs/gal

    HAPs PER SOLID GALLON：

    N/A

    PERCENT HAPS BY WEIGHT:

    N/A

    PERCENT LEAD BY WEIGHT:

    LEAD FREE

    WAX OR WAX-FREE SYSTEM

    WAX FREE



    APPLICATION PROPERTIES

    APPLICATION METHOD:

    Direct-Roll Coating

    APPLICATION VISCOSITY:

    28-33 sec with Zahn#4@77°F

    REDUCER:

    DIACETONE ALCOHOL

    SUBSTRATE：

    ALUMINUM

    PRETREATMENT:

    STD

    REQUIRED**CLEAR COAT&DFT：

    N/A

    REQUIRED**PRIMER COAT&DFT：

    N/A

    PEAK METAL TEMPERATURE:

    435°F-450°F

    WET FILM THICKNESS:

    1.72-2.07mil（s）



    DRY FILM PROPERTIES

    DRY FILM THICKNESS(PRIMER,TOP):

    Pmr：N/A

    TOP:0.5-0.6mil（s）

    DRY FILM THICKNESS(CLEAR,TOTAL):

    Clr：N/A

    TOTAL:0.5-0.6mil（s）

    PENCIL HARDNESS:

    F-H with Turquoise Pencil

    SOLVENT RESISTANCE：

    100+Rub Cycles with MEK

    GLOSS/SHEEN 1（Pretreatment）:

    80+@60°

    GLOSS/SHEEN 1（Pretreatment）:

    N/A

    T-BEND：

    0T-2T No Tape off

    IMPACT(RESERVE/DIRECT):

    24 in-lbs No Tape off

    ADHENSION:

    5B,No Tape off

    METAL MARKING RESISTANCE:

    No Metal Marking

    TOTAL SOLAR REFLECTANCE:

    N/A

    LUMINOUS REFLECTANCE FACTOR:

    N/A

    THEORETICAL COVERAGE：

    845 sq.ft./gal @0.55mil（s）

    COLOR ON-LINE:

    VISUAL

    ADDITIONAL NOTE:
