Multi-purpose polyester coatings
Coilcoat coatings are field proven, multiple purpose polyester finishes designed for a wide variety of applications. These coatings provide superior flow characteristics over a wide range of cure temperatures. Coilcoat coatings when applied over corrosion resistant primer to meet stringent roll forming and corrosion demands.
Benefits
Coilcoat coatings provide a number of unique benefits including:
Good resistance to sun, rain and other natural elements
Superior scratch resistance
Excellent overall adhesion Great flexibility and formability
Substrates:
Hot-Dip Galvanized(HDG)
Aluminum
Alu-zinc(AZ/Galvalume/Zincalume)
Colors
Coilcoat coatings are available in a wide of popular industry colors
End use

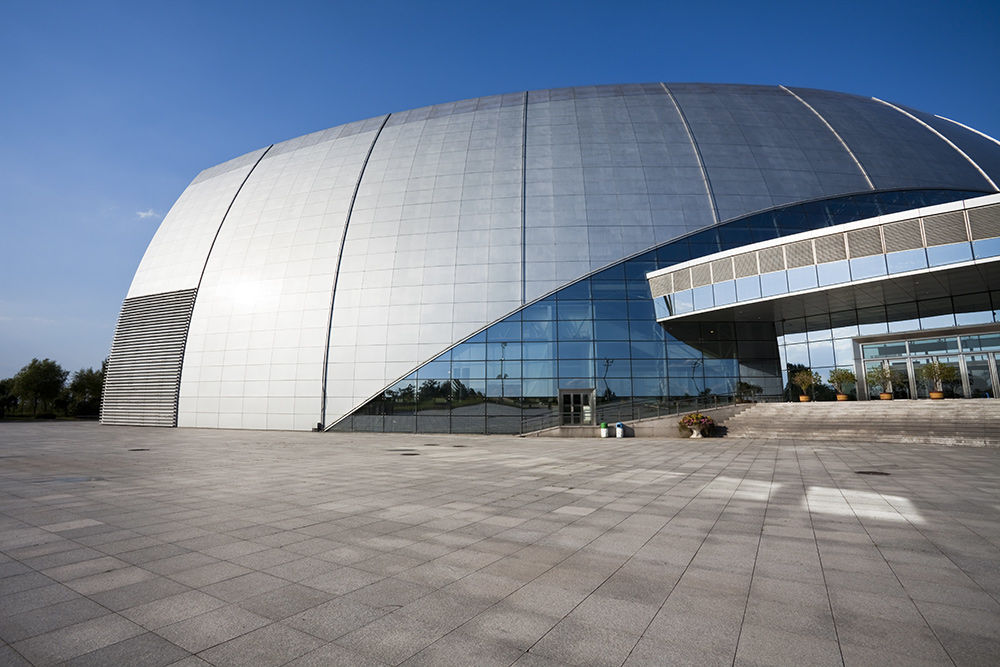

Coilcoat coatings are ideal for long-life external use on agricultural buildings,
rural buildings light commercial and pre-engineered buildings including:
Residential metal siding and roofing system
Interior liner panels,doors and trim
Rain carrying euipment
Mobile homes and truck trailers
Sign blank stock
Curtain rods,canopies and awnings
Enclosures
Other metal building components
|
PRODUCT DATA SHEET |
|
|
PRODUCT CODE |
TT450 |
|
NAME,SYSTEM |
HG BLACK,EXPOXY |
|
SHELF LIFE |
6 MONTHS FROM THE MFG DATE |
|
COATING PROPERTIES |
|
|
DENSITY(WEIGHT PER GALLON): |
08.14±0.2lbs/gal |
|
WEIGHT PERCENT SOLIDS: |
36.6±2.00% |
|
VOLUME PERCENT SOLIDS: |
29.0±2.00% |
|
PACKAGE VISCOSITY： |
28-33 sec with Zahn#4@77°F |
|
VOCs PER SOLID GALLON: |
2.74lbs/gal |
|
HAPs PER SOLID GALLON： |
N/A |
|
PERCENT HAPS BY WEIGHT: |
N/A |
|
PERCENT LEAD BY WEIGHT: |
LEAD FREE |
|
WAX OR WAX-FREE SYSTEM |
WAX FREE |
|
APPLICATION PROPERTIES |
|
|
APPLICATION METHOD: |
Direct-Roll Coating |
|
APPLICATION VISCOSITY: |
28-33 sec with Zahn#4@77°F |
|
REDUCER: |
DIACETONE ALCOHOL |
|
SUBSTRATE： |
ALUMINUM |
|
PRETREATMENT: |
STD |
|
REQUIRED**CLEAR COAT&DFT： |
N/A |
|
REQUIRED**PRIMER COAT&DFT： |
N/A |
|
PEAK METAL TEMPERATURE: |
435°F-450°F |
|
WET FILM THICKNESS: |
1.72-2.07mil（s） |
|
DRY FILM PROPERTIES |
||
|
DRY FILM THICKNESS(PRIMER,TOP): |
Pmr：N/A |
TOP:0.5-0.6mil（s） |
|
DRY FILM THICKNESS(CLEAR,TOTAL): |
Clr：N/A |
TOTAL:0.5-0.6mil（s） |
|
PENCIL HARDNESS: |
F-H with Turquoise Pencil |
|
|
SOLVENT RESISTANCE： |
100+Rub Cycles with MEK |
|
|
GLOSS/SHEEN 1（Pretreatment）: |
80+@60° |
|
|
GLOSS/SHEEN 1（Pretreatment）: |
N/A |
|
|
T-BEND： |
0T-2T No Tape off |
|
|
IMPACT(RESERVE/DIRECT): |
24 in-lbs No Tape off |
|
|
ADHENSION: |
5B,No Tape off |
|
|
METAL MARKING RESISTANCE: |
No Metal Marking |
|
|
TOTAL SOLAR REFLECTANCE: |
N/A |
|
|
LUMINOUS REFLECTANCE FACTOR: |
N/A |
|
|
THEORETICAL COVERAGE： |
845 sq.ft./gal @0.55mil（s） |
|
|
COLOR ON-LINE: |
VISUAL |
|
|
ADDITIONAL NOTE: |
|
|
