SINGLE POLYESTER
  • Detail
  • Technical Parameters
  • Single coat polyster coatings

    Coil coat coatings are polyester finishes designed for a wide variety of applications in roofing and cladding in normal environment. The key purpose is affordable coloured metal buildings . These can be directly applied on pre-treated substrate providing good adhesion during service life.

    Benefits

    Coilcoat coatings provide a number of unique benefits including:

    Good resistance to sun, rain and other natural elements

    Good scratch resistance

    Good overall adhesion

    Good flexibility and formability



    Substrates:

    Hot-Dip Galvanized(HDG)

    Aluminum Colors

    Coil coat coatings are availiable in a wide spectrum of industries colors.

    End use

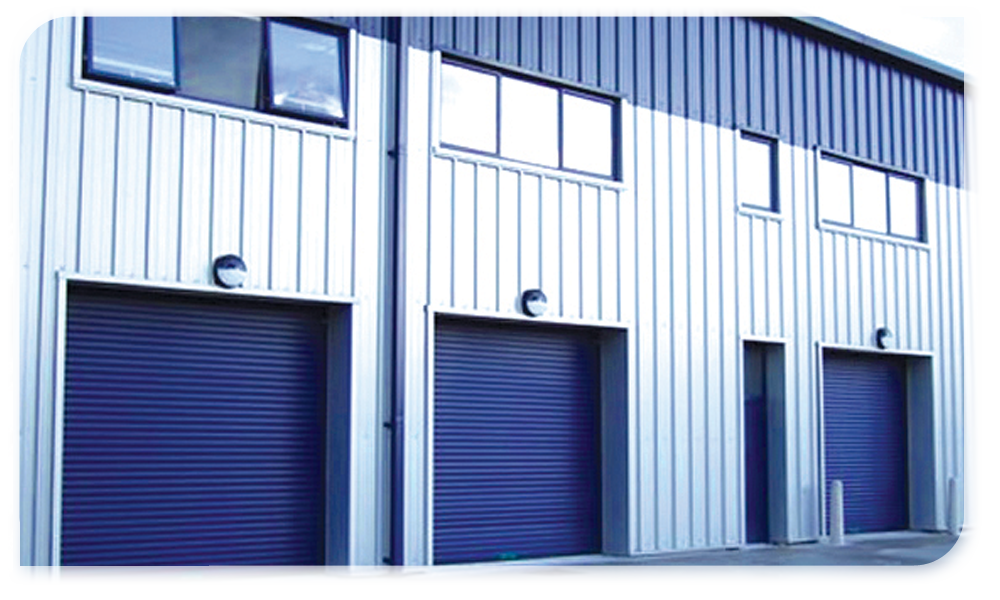

    Coilcoat coatings are ideal for average life external use on agricultural buildings,rural buildings and

    construction site coverings

    Residential metal siding and roofing system

    Interior liner panels,doors and trim

    Other metal building components

    Fencing for under construction site


  • PRODUCT DATA SHEET

    PRODUCT CODE

    TT450

    NAME,SYSTEM

    HG BLACK,EXPOXY

    SHELF LIFE

    6 MONTHS FROM THE MFG DATE



    COATING PROPERTIES

    DENSITY(WEIGHT PER GALLON):

    08.14±0.2lbs/gal

    WEIGHT PERCENT SOLIDS:

    36.6±2.00%

    VOLUME PERCENT SOLIDS:

    29.0±2.00%

    PACKAGE VISCOSITY:

    28-33 sec with Zahn#4@77°F

    VOCs PER SOLID GALLON:

    2.74lbs/gal

    HAPs PER SOLID GALLON:

    N/A

    PERCENT HAPS BY WEIGHT:

    N/A

    PERCENT LEAD BY WEIGHT:

    LEAD FREE

    WAX OR WAX-FREE SYSTEM

    WAX FREE



    APPLICATION PROPERTIES

    APPLICATION METHOD:

    Direct-Roll Coating

    APPLICATION VISCOSITY:

    28-33 sec with Zahn#4@77°F

    REDUCER:

    DIACETONE ALCOHOL

    SUBSTRATE:

    ALUMINUM

    PRETREATMENT:

    STD

    REQUIRED**CLEAR COAT&DFT:

    N/A

    REQUIRED**PRIMER COAT&DFT:

    N/A

    PEAK METAL TEMPERATURE:

    435°F-450°F

    WET FILM THICKNESS:

    1.72-2.07mil(s)



    DRY FILM PROPERTIES

    DRY FILM THICKNESS(PRIMER,TOP):

    Pmr:N/A

    TOP:0.5-0.6mil(s)

    DRY FILM THICKNESS(CLEAR,TOTAL):

    Clr:N/A

    TOTAL:0.5-0.6mil(s)

    PENCIL HARDNESS:

    F-H with Turquoise Pencil

    SOLVENT RESISTANCE:

    100+Rub Cycles with MEK

    GLOSS/SHEEN 1(Pretreatment):

    80+@60°

    GLOSS/SHEEN 1(Pretreatment):

    N/A

    T-BEND:

    0T-2T No Tape off

    IMPACT(RESERVE/DIRECT):

    24 in-lbs No Tape off

    ADHENSION:

    5B,No Tape off

    METAL MARKING RESISTANCE:

    No Metal Marking

    TOTAL SOLAR REFLECTANCE:

    N/A

    LUMINOUS REFLECTANCE FACTOR:

    N/A

    THEORETICAL COVERAGE:

    845 sq.ft./gal @0.55mil(s)

    COLOR ON-LINE:

    VISUAL

    ADDITIONAL NOTE:
