Sparkle aluminum coils ,are also one kind of color coated aluminum coils,but they are different from the normal colors,there is special powder in the coating to give the whole product shinny effects after coils are coated.Result in outstanding features,such products are regarded by the market of decoration.We cater for any custom colors and always offer truly unlimited.

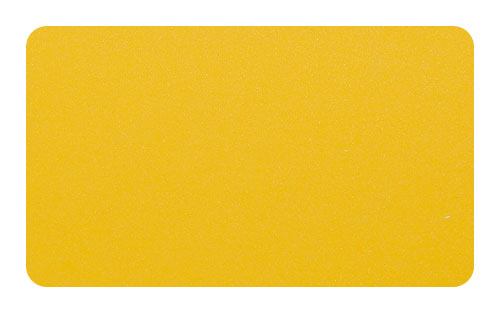

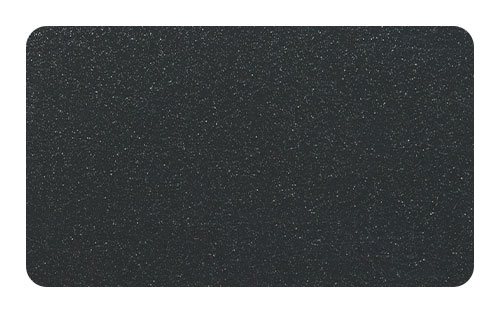

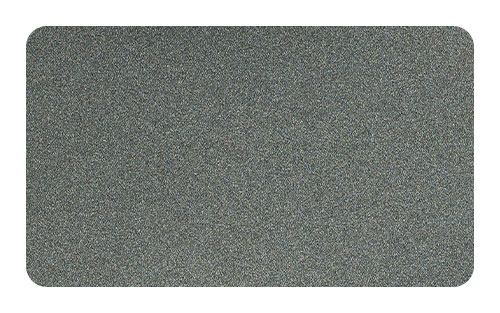

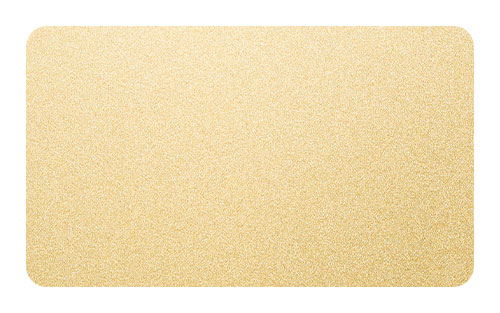

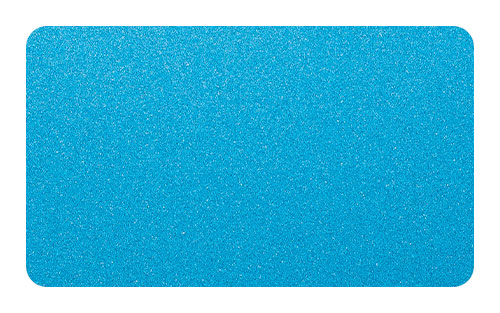

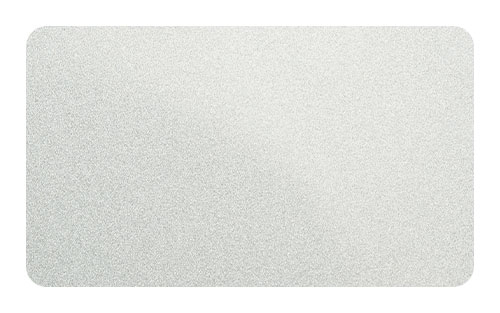

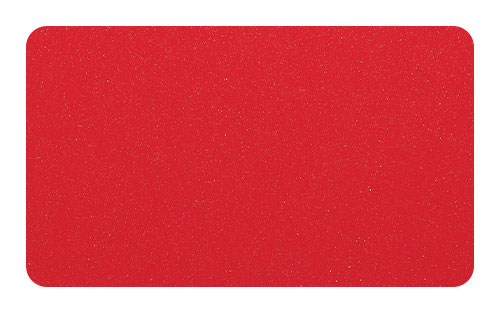

Colours

Optical Values
·All aluminium alloys and tempers
·All colours and glosses(Ral and Pantone)
·Customized colours and designs
·All coatings systems(FEVE/PU-PA/HDPE/PE)

Mechanical Properties
Tensile strength Rm[MPa]: >125
Yield strength Rp 0,2[MPa]: >105
Elongation at break A50[%]: ≥ 2

Tolerances
Mill thickness[mm]: 0,20 – 0,50 ± 0,04
Mill thickness[mm]: 0,51 – 1,00 ± 0,05
Width slit coil[mm]: ± 0,20 standard
Flatness[%]: 1 % of wavelength

Protective Film
Protective film type: PE – Film
Protective film thickness[µm] : 40 – 60

Coating Layer
Primer DFT[µm]: 10 ± 1
Top coat DFT [µm] :16 ± 2
Pencil hardness: ≥ 2H
Flexibility T-Bend: 2T Maximum

Application
Aluminum Composite Panel(ACP),Label,Honeycomb Panel, Sandwich panels,Rolling Shutter,Wall cladding system,Decorative renovation for storey-added old buildings, Wallboard and Ceilings for tunnels
