Technical Specifications
Supply form: Coil, Strip, Sheet
Thickness [mm]: 0,06 – 3,00
Width up to[mm]: 2200,00
Internal diameter[mm]: 150,400,500
Maximum coil weight[MT]: ≤4

Phosphorescent Aluminium

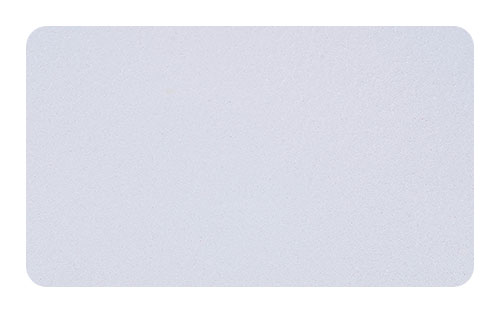

An aluminum surface with a self-luminous effect is treated to emit light in low-light or dark environments, creating a glow-in-the-dark effect. This innovative finish integrates photoluminescent materials into the aluminum, enabling it to absorb light during the day and emit a soft, ambient glow at night. The result is both visually striking and highly functional, offering safety and aesthetic benefits across various applications.
A specially developed, innovative, and highly durable polyurethane coating that glows intensively when it gets dark.When the lights go out, the room is intensively lit for a short period of time avoiding outbreaks of panic. Phosphorescent Coatings have a cream white appearance in daylight and are also suitable for applications on the outside.
Colours
Optical Values
·All aluminium alloys and tempers
·All colours and glosses(Ral and Pantone)
·Customized colours and designs
·All coatings systems(SDP/HDPE/PE)
Mechanical Properties
Tensile strength Rm [MPa]:>125
Yield strength Rp 0,2 [MPa]:>105
Elongation at break A50 [%]:≥ 2
Tolerances
Mill thickness[mm]: 0,20 – 0,50 ± 0,04
Mill thickness[mm]: 0,51 – 1,00 ± 0,05
Width slit coil[mm]: ± 0,20 standard
Flatness[%]: 1 % of wavelength
Protective Film
Protective film type: PE – Film
Protective film thickness[µm] : 40 – 60
Coating Layer
Top coat DFT [µm] :16 ± 2
Pencil hardness: ≥ 2H
Flexibility T-Bend: 2T Maximum
Advantages
**Photoluminescent Properties**: The self-luminous effect is achieved by embedding photoluminescent pigments or coatings into the aluminum surface. These materials absorb and store light energy from natural or artificial sources and then release it as a visible glow when the surrounding light dims.
**Long-Lasting Glow**: The duration and intensity of the glow can vary depending on the specific photoluminescent materials used. Typically, the surface can emit light for several hours after being fully charged by exposure to light, providing sustained visibility in dark conditions.
**Non-Toxic and Eco-Friendly**: The photoluminescent materials used in the self-luminous finish are non-toxic and environmentally friendly, making them safe for use in a wide range of settings, including residential, commercial, and public spaces.
**Enhanced Safety and Visibility**: The glow-in-the-dark effect enhances visibility in low-light environments, making it ideal for safety applications such as emergency signage, exit routes, and pathways. It helps guide people in the dark, reducing the risk of accidents.
Application
**Emergency Signage and Pathways**: Aluminum with a self-luminous finish is commonly used for emergency exit signs, directional markers, and safety pathways. The glow ensures that these critical signs and pathways remain visible during power outages or in dark conditions.
**Architectural and Interior Design**: In architecture and interior design, self-luminous aluminum can be used for decorative elements such as wall panels, trims, and accents. The glow-in-the-dark effect can create unique lighting features that enhance the ambiance of a space.
**Consumer Products**: Everyday items such as keychains, flashlights, and gadgets can incorporate self-luminous aluminum to ensure they are easily located in the dark.
**Transportation**: In transportation, self-luminous aluminum is used for safety markings on vehicles, such as in aircraft, trains, or ships, as well as in tunnels and on highways to improve nighttime visibility.
**Outdoor Applications**: Self-luminous aluminum is ideal for outdoor use in gardens, walkways, and parks, where it can provide subtle illumination without the need for external power sources.
