The flat ,smooth, digital surface with vastly improved ink adhesion helps to display printed colours with increased brightness and intensity.
Available in matt/matt or gloss/matt, both sides of the panel have a finish that has been developed specifically for digital and screen printing.  This helps display colours with increased brightness and intensity with the added benefit of greater durability.

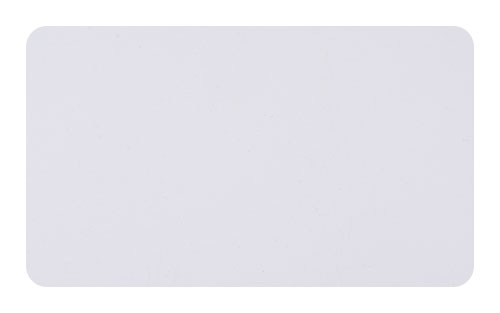

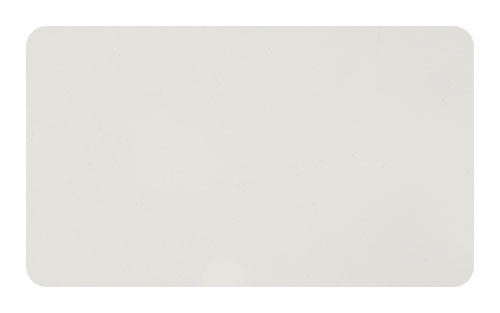

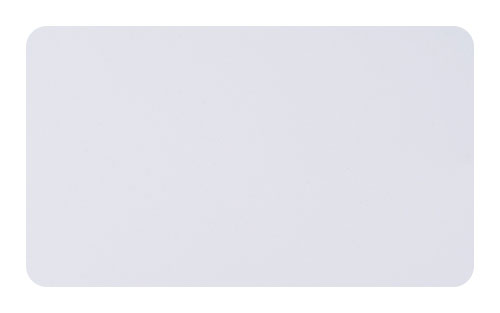

Colours

Optical Values
·All aluminium alloys and tempers
·Solid colours and Brushed finish
·Customized colours and designs
·coatings systems(HDPE/PE)

Mechanical Properties
Tensile strength Rm[MPa]: >125
Yield strength Rp 0,2[MPa]: >105
Elongation at break A50[%]: ≥ 2

Tolerances
Mill thickness[mm]: 0,20 – 0,50 ± 0,04
Mill thickness[mm]: 0,51 – 1,00 ± 0,05
Width slit coil[mm]: ± 0,20 standard
Flatness[%]: 1 % of wavelength

Protective Film
Protective film type: PE – Film
Protective film thickness[µm] : 40 – 60

Coating Layer
Top coat DFT [µm] :16 ± 2
Pencil hardness: ≥ 2H
Flexibility T-Bend: 2T Maximum

Application
Aluminum Composite Panel(ACP),Label,Honeycomb Panel, Sandwich panels,Signal Panel and Advertising materials
